TSA Nissan Y62 Patrol GVM Upgrade – 4.2 T GVM (2” Lift + Front Axle Upgrade | APEX | EFS | Airbag Man | SSM Approved)

TSA Nissan Y62 Patrol GVM Upgrade – 4.2 T GVM (2” Lift + Front Axle Upgrade | APEX | EFS | Airbag Man | SSM Approved)

Built for owners running front-end accessories such as bullbars or winches, the TSA 4.2 T GVM Upgrade with Front Axle Upgrade transforms your Y62 Patrol into a truly capable, compliant touring platform.
This federally approved pre-registration upgrade increases your Gross Vehicle Mass (GVM) to 4,200 KG, while boosting the front-axle rating to 1,750 KG and retaining the Patrol’s 3.5 T towing capacity (pre-registration).

With a compliant 2” lift, improved load distribution, and enhanced front-axle strength, this setup provides the perfect balance between payload, comfort, and off-road control — all engineered to meet Australian standards.

Inclusions:

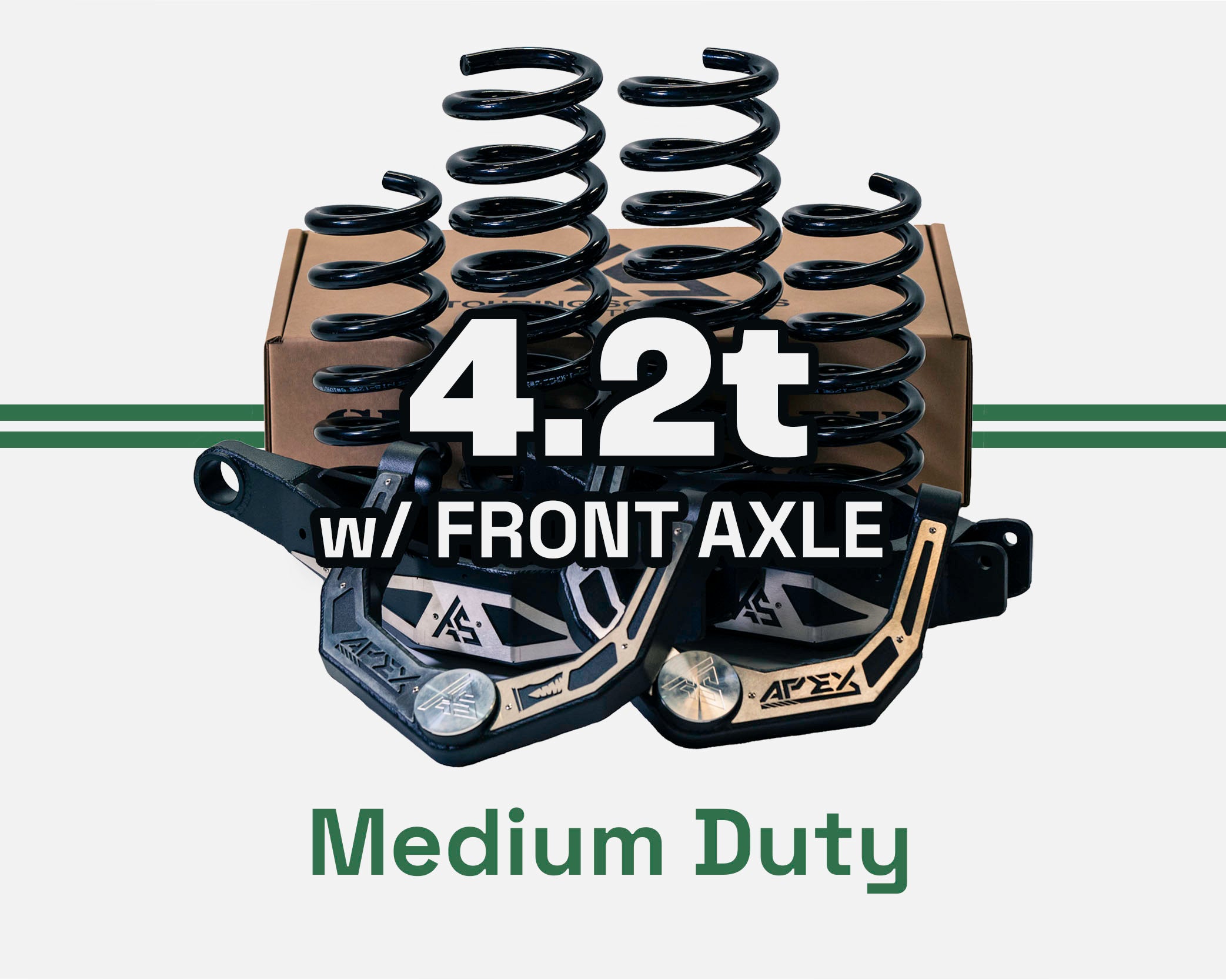

• APEX Upper Control Arms – increases front-axle load capacity by 100 KG and corrects geometry under lift

• APEX Lower Control Arm Kit – includes spring seat kit, toe control arm bush kit and bolt kit

• EFS Front Coil Springs (+150 KG / +40 MM) – improved support for bullbar and winch weight

• EFS Rear Coil Springs (+300 KG / +40 MM) – tuned for touring and towing loads

• Airbag Man Air Suspension Helper Kit – adjustable rear load support for variable payloads

• Cat 6 Indicators – ADR-compliant lighting for GVM certification

• SSM Federal Engineering Compliance – pre-registration certification included

Axle Ratings & Tyre Requirements:

• Front Axle: 1,750 KG

• Rear Axle: 2,550 KG

• Maximum Tyre Size: 285/70R18

• Load-Rated Wheels & Tyres Required – OEM rims are not suitable as they lack documented load ratings

• Minimum Tyre & Rim Rating: 1,275 KG per corner

Seating & Variant Options:

• Available for Ti and Ti-L variants

• Option to reduce from 7 / 8 seats to 5 for payload and compliance flexibility

• Fully compliant with NB1 goods-carrying classification

Requirements & Details:

• Lift: 2” (40 MM front and rear)

• Price: $11,220 AUD – includes product, installation, and federal compliance (inc. GST, excl. freight)

• Post-Registration Engineering: Additional third-party fee applies

The TSA 4.2 T Y62 Patrol GVM + Front Axle Upgrade is the ideal solution for heavily-accessorised Patrols — delivering extra front-end capacity, balanced suspension geometry, and full federal compliance for touring and towing.

Everyday Offroad and TSA provide federally approved GVM upgrades for the Nissan Patrol Y62 — engineered, tested, and certified for Australia’s harshest conditions.
