TSA Nissan Y62 Patrol GVM Upgrade – 4.2 T GVM (2” Lift | APEX | EFS | Airbag Man | SSM Approved)

TSA Nissan Y62 Patrol GVM Upgrade – 4.2 T GVM (2” Lift | APEX | EFS | Airbag Man | SSM Approved)

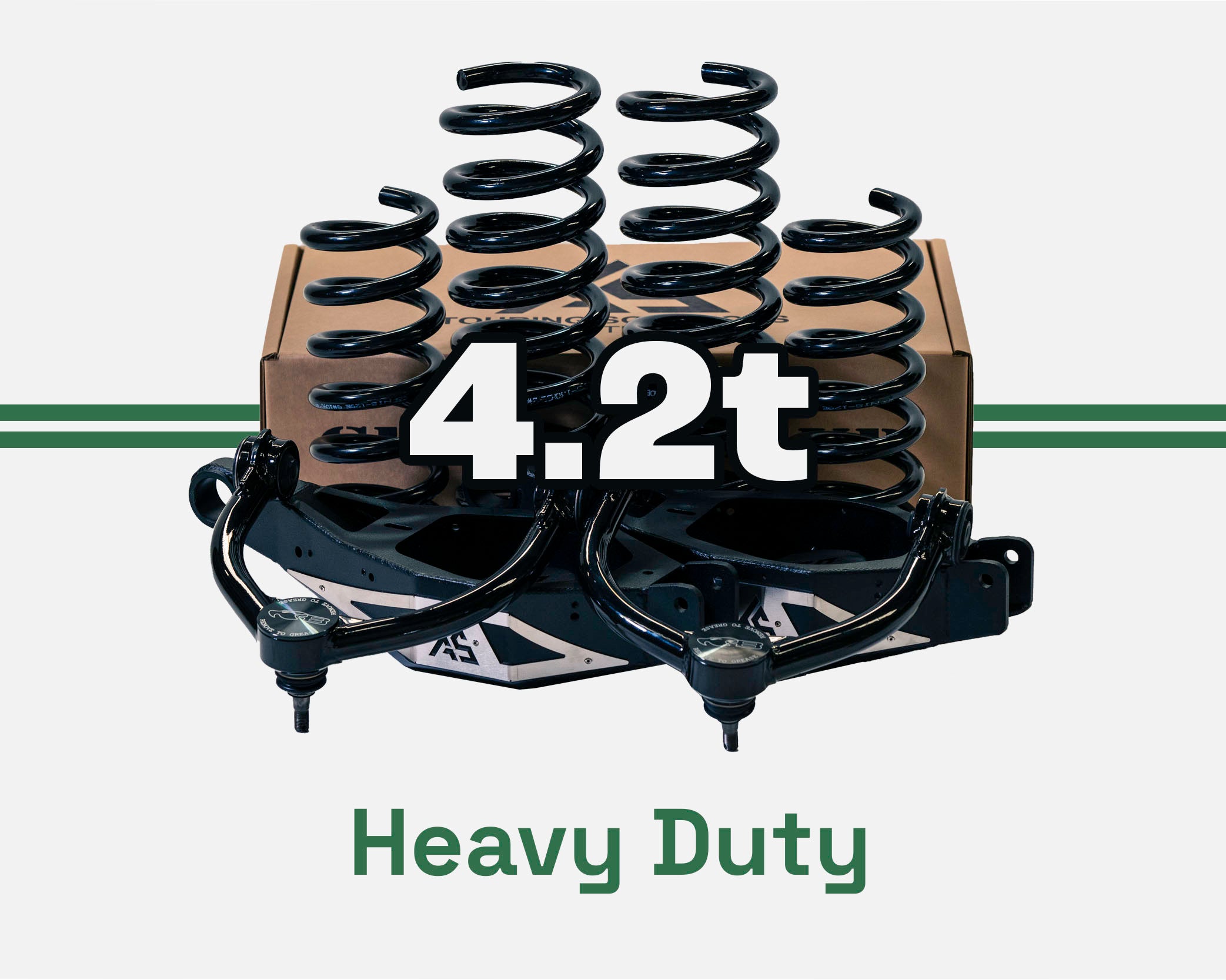

Take your Y62 Patrol to the next level of capability and compliance with the TSA 4.2 T GVM Upgrade Package, engineered for superior strength, comfort, and towing confidence.
Developed and federally approved for pre-registration vehicles, this upgrade increases your Gross Vehicle Mass (GVM) to 4,200 KG, providing greater payload capacity and balanced handling under load.

This package delivers a compliant 2” lift while enhancing ride stability for touring, towing, and work applications. Using a proven combination of APEX, EFS, and Airbag Man components, it ensures unmatched reliability and control under demanding Australian conditions.

Inclusions:

• Blackhawk Upper Control Arms – corrected caster and alignment for optimal geometry under lift

• EFS Front Coil Springs (+150 KG / +40 MM) – improved front-end support and ride comfort

• EFS Rear Coil Springs (+300 KG / +40 MM) – increased load support and rear stability

• APEX Lower Control Arm Kit – includes spring seat kit, toe control arm bush kit, and bolt kit for strength and durability

• Airbag Man Air Suspension Helper Kit – adjustable rear load support for varying payloads

• Cat 6 Indicators – ADR-compliant lighting for certification

• SSM Federal Engineering Compliance – pre-registration certification included

Axle Ratings & Tyre Requirements:

• Front Axle: 1,650 KG

• Rear Axle: 2,550 KG

• Maximum Tyre Size: 285/70R18

• Load-Rated Wheels & Tyres Required – OEM rims are not suitable as they lack documented load ratings

• Minimum Tyre & Rim Rating: 1,275 KG per corner

Seating & Variant Options:

• Available for Ti and Ti-L variants

• Optional seating reduction from 7 or 8 seats to 5 for payload and compliance flexibility

• Fully compliant with NB1 goods-carrying classification

Requirements & Details:

• Lift: 2” (40 MM front and rear)

• Price: $9,955 AUD – includes product, installation, and federal compliance (inc. GST, excl. freight)

• Post-Registration Engineering: Additional third-party fee applies

The TSA 4.2 T Y62 Patrol GVM Upgrade is designed for owners who need serious payload and towing capability without compromising comfort or control. Fully compliant and engineered for reliability, it’s the go-to solution for touring, off-road, and work-ready builds.

Everyday Offroad and TSA deliver federally approved GVM upgrade solutions for the Nissan Patrol Y62 — engineered, tested, and certified for Australia’s toughest conditions.
