ORI Stage 5 RAM 2500 GVM Upgrade – 5550 KG GVM (Fox 2.5 Performance Elite | BDS 3” Radius Arm Kit | SSM Approved)

ORI Stage 5 RAM 2500 GVM Upgrade – 5550 KG GVM (Fox 2.5 Performance Elite | BDS 3” Radius Arm Kit | SSM Approved)

The ORI Stage 5 GVM Upgrade Package represents the pinnacle of strength, stability, and compliance for the RAM 2500, designed for those demanding maximum performance on- and off-road.

This federally approved system increases the Gross Vehicle Mass (GVM) from 4495 KG (NB1) to 5550 KG (NB2), boosting payload to 1905 KG while retaining the factory 4.5 T braked towing capacity.
With Fox Performance Elite suspension and a BDS 3” Radius Arm Kit, Stage 5 delivers outstanding articulation, damping control, and strength — engineered for heavy-duty touring, service-body builds, and expedition-grade use.

Inclusions

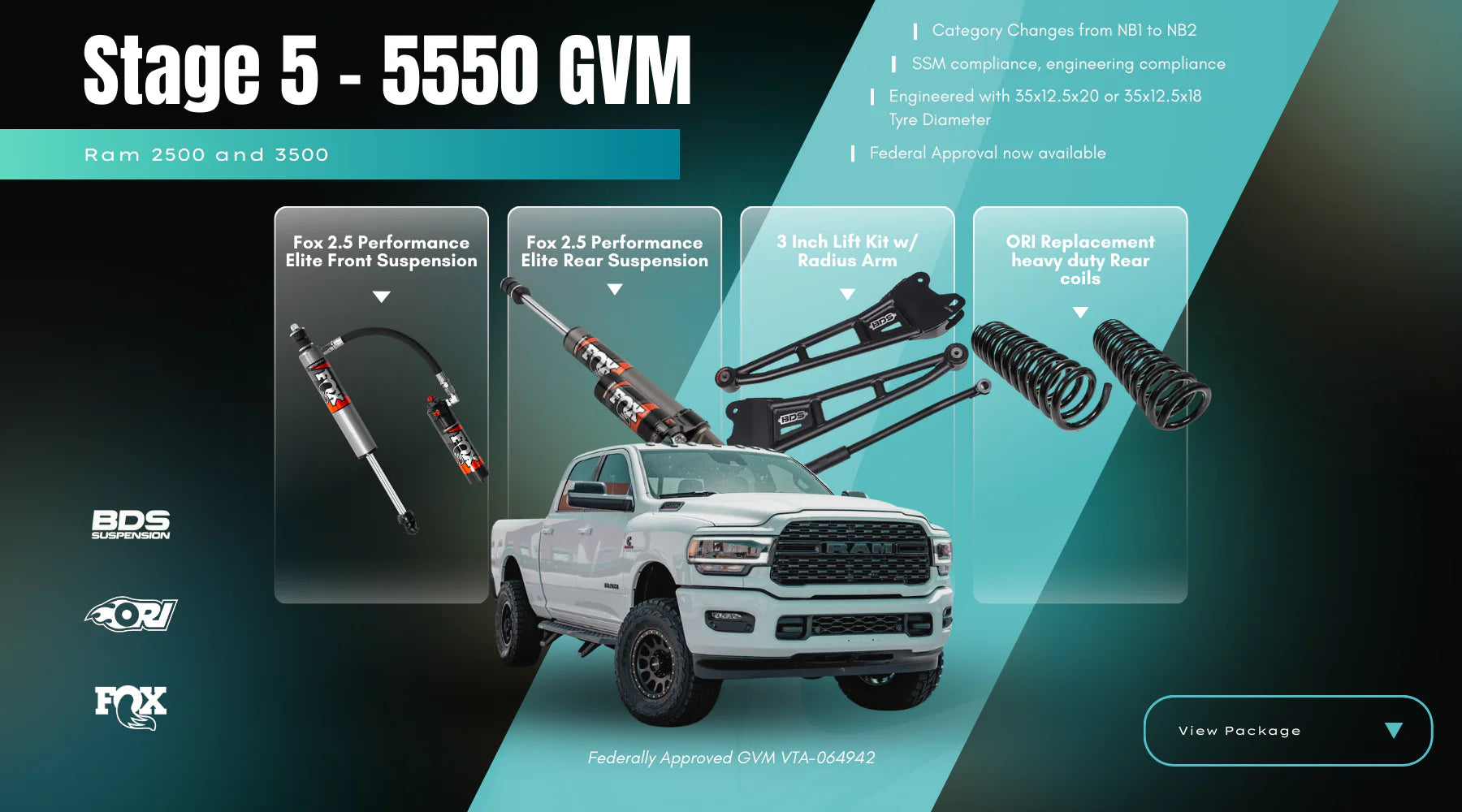

• Fox 2.5 Performance Elite Front Shocks (883-26-062) – remote-reservoir, high-flow dampers for precise control and fade-free performance

• Fox 2.5 Performance Elite Rear Shocks (883-26-065) – monotube design for maximum stability under sustained loads

• BDS 3” Radius Arm Kit (BDS1653FPE) – heavy-duty arms improving caster, alignment, and articulation on lifted vehicles

• BDS Front & Rear Coil Springs (+75 MM Lift) – tuned for balanced ride quality and constant-load capability

• SSM Federal Engineering Compliance – pre-registration certification included

Performance & Axle Specifications

• Gross Vehicle Mass (GVM): 5550 KG (NB2 classification)

• Payload: Up to 1905 KG

• Braked Towing Capacity: 4500 KG (retained)

• Gross Combined Mass (GCM): 12474 KG

• Front Axle Capacity: 2720 KG

• Rear Axle Capacity: 2840 KG

• Maximum Tyre Size: 35×12.5R18 or 35×12.5R20

• Minimum Wheel Load Rating: 1600 KG per wheel

Requirements & Details

• Lift: Approx. 3” (75 MM)

• Category Change: NB1 → NB2

• Load-Rated Wheels & Tyres Required

• Price: Varies by configuration – includes product, installation, and federal compliance (inc. GST, excl. freight)

The ORI Stage 5 RAM 2500 GVM Upgrade delivers maximum certified performance — combining a proven BDS 3” lift, Fox Performance Elite suspension, and full SSM federal approval for unmatched capability and compliance.

Everyday Offroad and ORI supply federally approved GVM upgrades for RAM trucks — engineered, tested, and built to endure Australia’s harshest conditions.
