ORI Stage 3 RAM 2500 GVM Upgrade – 5300 KG GVM (Fox 2.5 Performance Elite | BDS 3” Radius Arm Kit | SSM Approved)

ORI Stage 3 RAM 2500 GVM Upgrade – 5300 KG GVM (Fox 2.5 Performance Elite | BDS 3” Radius Arm Kit | SSM Approved)

Transform your RAM 2500 into a heavy-duty performer with the ORI Stage 3 GVM Upgrade Package, engineered for strength, control, and compliance under Australian conditions.

This federally approved system raises your Gross Vehicle Mass (GVM) from 4495 KG (NB1) to 5300 KG (NB2), increasing payload to 1655 KG while maintaining the 4.5 T braked towing capacity. Built around Fox Performance Elite dampers and the proven BDS 3” Radius Arm Kit, this setup provides premium suspension articulation, stability, and confidence under load — ideal for serious touring, trade, and off-road applications.

Inclusions

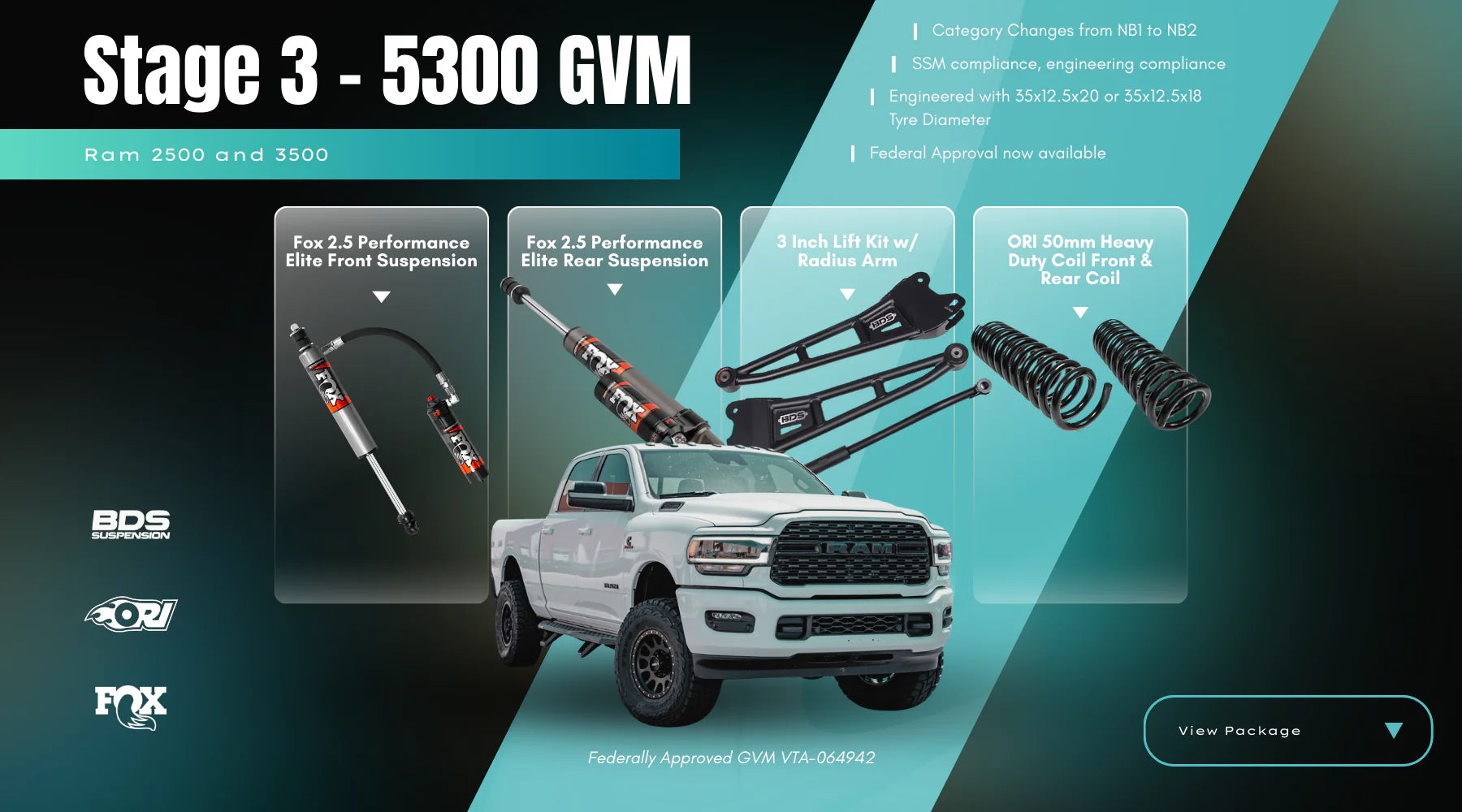

• Fox 2.5 Performance Elite Front Shocks (883-26-062) – remote-reservoir design for exceptional control and fade resistance under heavy load

• Fox 2.5 Performance Elite Rear Shocks (883-26-065) – high-capacity monotube shocks for precision damping and ride comfort

• BDS 3” Radius Arm Kit (BDS1653FPE) – engineered for improved caster, strength, and wheel alignment on lifted vehicles

• BDS Front & Rear Coil Springs (+75 MM Lift) – performance-tuned coils for balanced ride height and handling

• SSM Federal Engineering Compliance – pre-registration certification included

Performance & Axle Specifications

• Gross Vehicle Mass (GVM): 5300 KG (NB2 classification)

• Payload: Up to 1655 KG

• Braked Towing Capacity: 4500 KG (retained)

• Gross Combined Mass (GCM): 12474 KG

• Front Axle Capacity: 2720 KG

• Rear Axle Capacity: 2840 KG

• Wheel & Tyre Requirements: Factory wheels and load-rated tyres approved

• Maximum Tyre Size: 35×12.5R18 or 35×12.5R20

Requirements & Details

• Lift: Approx. 3” (75 MM)

• Category Change: NB1 → NB2

• Price: Varies by configuration – includes product, installation, and federal compliance (inc. GST, excl. freight)

The ORI Stage 3 RAM 2500 GVM Upgrade provides the perfect combination of capability and control. With its premium BDS 3” lift, Fox 2.5 Performance Elite suspension, and full federal approval, it’s the ultimate setup for owners who demand serious performance and compliance in one package.

Everyday Offroad and ORI deliver engineered, tested, and federally approved GVM upgrades for RAM trucks — built tough for Australia’s harshest conditions.
